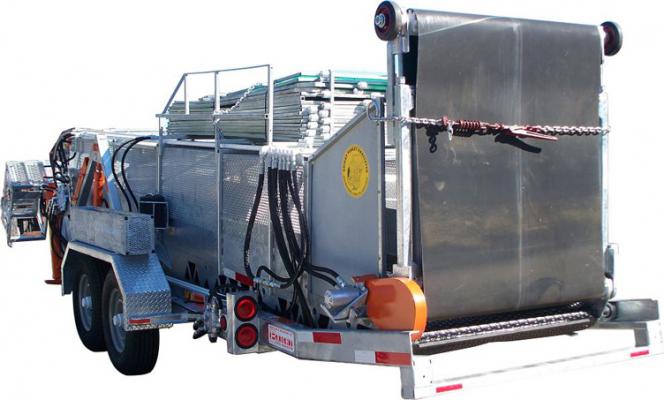

The new Bright Coop E-Z Clean Turkey Harvesters are lighter, stronger and easier to clean and maintan than ever before. More turkeys are loaded with Bright Coop Harvesters than all other’s combined. All Bright harvesters are equipped with the “Wal-Em-In-Slide” which allows the entire pick-up conveyor system to move up to coops; leaving no space between coops and loader. Reverse Tongue Turkey Harvester comes with a tongue on the Cooper’s end, allowing the loader to be backed into the house without unhooking from the vehicle. Also available in an extended 24′ model.
Standard Equipment
Running Gear
6″ x 4″ x 1/4″ Structural Tubing Frame with 1-1/2″ Pipe Cross Members and Heavy Duty Floor Plate Fenders. Running Gear slides for proper towing balance on Reverse Tongue Models.
Axles & Brakes
(2) 6,000 lb. Rubber Torsion Axles with Electric Brakes. Axles slide to position for towing or unloading.
Tires & Wheels
235/85R16 Tires Mounted on 16×6.25 8-Hole Steel Wheels
Lights
Sealed wiring harness, rubber mounted DOT highway lights
Landing Legs
(3) Hand Crank Drop Leg – 2 Located on Operator’s End and 1 Located on Pick Up End
Tongue
Pulls from Cooper’s end. 2-5/16″ Ball “Hammer” Hitch. Tongue swings away during operation.
Main Conveyor
12 x 10.6 lb. Channel Frame with E-Z Clean Web Design. 12″ Corrugated Metal (“Tuff Scuff”) and 1/2″ Flat Expanded Metal Enclosure
Conveyor Belting
Galvanized Wire Belt
Cooper’s Platform
Hydraulic, Self Leveling and Folding with Spring Assist for transport.

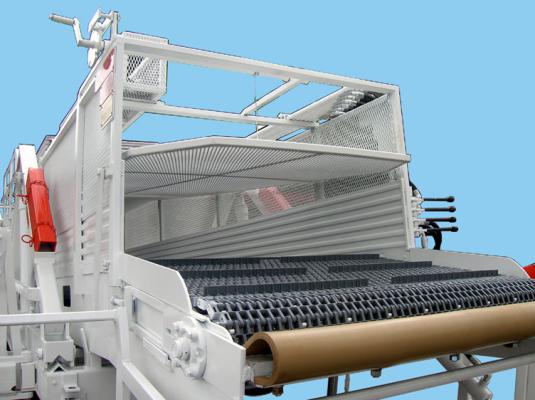

Pick-up Conveyor
6′ pick-up conveyor is level with ground and stationary during operation – Belting material PVC. Birds may be loaded from the end, sides, or both at the same time.
Finish
Hot Dip Galvanized Main Frame and Running Gear
Corral Boards
1/2″ Painted Exterior Plywood
Specifications
- Maximum Loading Height: 144″
- Towing Height: 80″
- Cooper’s Platform Height: 109″
- Overall Length (including tongue): 29’2″ for Standard Model and 35′ for Extended model.
- Weight: 7,440 lbs. +/- 3%
Options
- 12′ Pre-Loader Complete
- Hydraulic Landing Legs
- House Loading Tongue
- Fiberglass Corral Boards in Galvanized Metal Frames
- Additional 4′ in Length
- Powered Telescoping Tongue (Available on Extended Length Harvesters Only)
- Pintle Hitch
- Painted Main Frame and Running Gear
- PVC and Intralox Belt Options
- Bright Power Units (details below)
| Diesel Power Unit | Gasoline Power Unit | Electric Power Unit | |
|---|---|---|---|
| Image |  |  |  |
| Engine | |||
| KUBOTA® liquid cooled D902-E3B with 21.5 HP is a perfect match for the 12 gpm gear pump. The Tier IV engine is equipped with glow plugs for cold start. | Honda GX 630 | ||
| Type | 3 cylinder in-line | V-twin cylinder | |
| Gross Power | 21.5 HP (16.1 Kw) @ 3200 rpm | 20.8 HP (15.5 Kw) @ 3600 rpm | |
| Fuel Tank Cap. | 15 US gal. (56 L) | 15 US gal. (56 L) | |
| Hydraulic Tank Cap. | 20 US gal. (76 L) | 9 US gal. (76 L) | |
| Electric Motor | |||
| 5 HP 3 Three Phase (Electrical supply to be furnished by customer) | |||

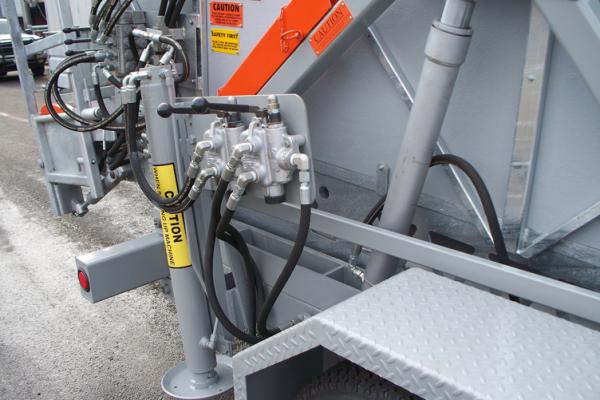

| Hydraulic System | |||
| The direct mounted 0.93 cubic inch (15.2 cc) gear pump is sized to drive all Bright Coop Turkey loader models. The power unit is equipped with a main relief valve and an oil cooler and an oversized high quality return filter. These features will make a long lasting unit. Note that the unit features 3/4" quick couplers for easy hook-up. | The belt driven 0.93 cubic inch (15.2 cc) gear pump is sized to drive all Bright Coop Turkey loader models. The power unit is equipped with a main relief valve and a return filter. These features will make a long lasting unit. Note that the unit features 3/4" quick couplers for easy hookup. | The belt driven 0.93 cubic inch (15.2 cc) gear pump is sized to drive all Bright Coop Turkey loader models. The power unit is equipped with a main relief valve and a return filter. These features will make a long lasting unit. Note that the unit features 3/4" quick couplers for easy hook-up. | |
| Chassis | |||
| Fork tubing is integrated in the main chassis for easy manipulation of the whole unit. Anchor points (4) are also integrated to the main frame for easy mounting on a bed of a truck. | One piece frame | ||
| Safety Cage | |||
| The optional safety cage with steel hinged hood features greasable hinges and lifting eyes for easy removal as well as lifting the whole unit. | |||
| Overall Dimensions | |||
| Overall Length | 53" | 46" | 33" |
| Overall Width | 38-1/2" | 16" | 30" |
| Height | 58" | 36" | 37" |
| Approx Weight | 1150 lbs. | ||
