Bright Coop, Inc. is the authorized dealer for Viking Specialized Poultry Trailers.

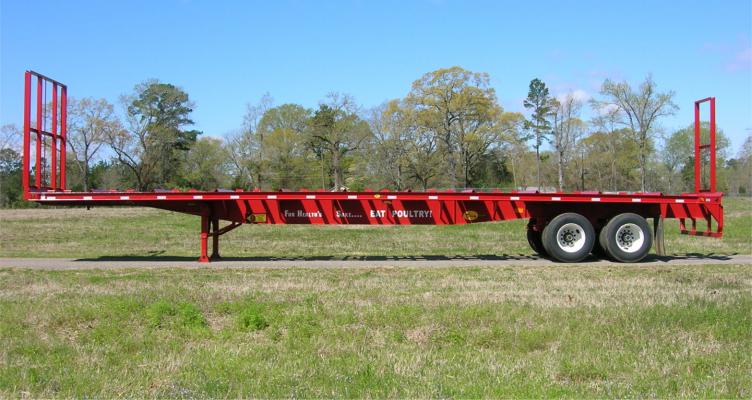

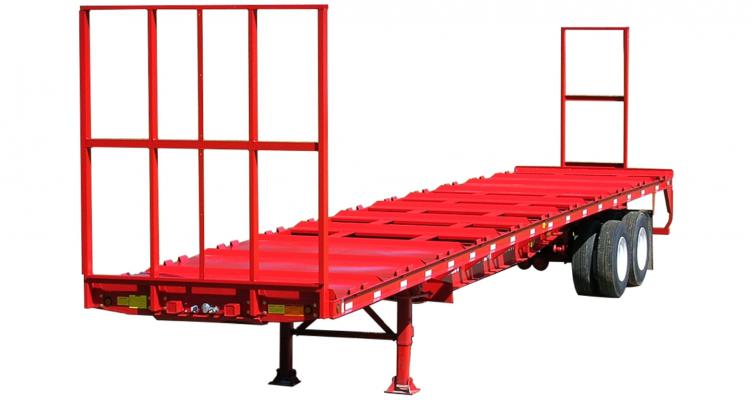

Designed specifically for the poultry industry. The Viking Specialized “Poultry Special Flat” is the leader in poultry live transport trailers. Formed angles and nesting devices make cage placement safe and easy during loading and unloading. The formed angles provide an air space between the cages for air flow and prevent cage hang up during loading and unloading. Front and rear bulkheads provide added security for cage movement and panels can be added to block direct wind during transportation. Easy loading, easy cleaning, and safely transporting more product from the farm. Capacity: 80,000 lb. GVWR.
Features
Mainframe
24” Fabricated main beams with 2” camber, 3/8” x 6” top and bottom flanges with 1/4” web welded on both sides. All flange and web material is high strength steel
Crossmembers
4” x 3.2# Jr. I beam on 26” centers. Formed angles on top of the main beams and siderails serve as cage nesting devices and provide a 4-3/4” air space between cages
Kingpin
2” SAE kingpin, 3/8” kingpin plate, 36” kingpin setting (standard)
Siderails
6” x 8.2# (Inverted) structural channel. Two nesting devices between each formed angle
Suspension
HUTCH® H9700T three point spring suspension with hi-arch heavy duty 3 leaf springs
Axles
(2) 25,000 Lb., 5” round, 5/8” wall
Brakes
16-1/2” x 7”, Type 30/30 brake chambers, outboard drums, Meritor WABCO® (2S/1M) ABS on one axle
Wheels
8.25 x 22.5, Steel 10 hole disc, hub piloted (color: white)
Tires
11R x 22.5 Radials
Landing gear
Our standard landing gear has a 2 speed gear with 62,500 lb. lift capacity; 200,000 lb. static capacity
Finish
Poultry special trailers are shotblasted and primed with zinc-rich primer and top coated with a high solid polyurethane paint. Colors: black, red or cat yellow (standard)
Floor
10 ga. steel is standard over the kingpin and tandem areas only. This protects the axles and suspensions from debris, while keeping the weight of the trailer low.
Lights
7-Way main receptacle, sealed wiring harness, rubber mounted LED lights. 3 Lights per side including mid-turn (4 Light cornering system and back-up lights are available)
Tandem
105” Tandem setting from the rear of the trailer with 49” axle spacing. Optional settings are available
Tiedowns
3/4” Tie bar located under the crossmembers running the full length of the trailer for chain and binder attachment

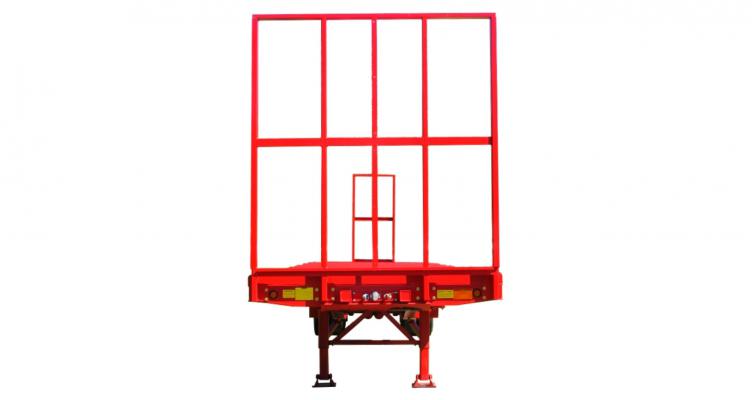

Rear bumper
D.O.T. certified rear underride guard/bumper and high visibility reflective conspicuity tape
The “Poultry Special Flat” has been the favorite for many years. So many of our valued customers have depended on and have proven the value of this trailer. When you think of poultry live transport, there’s always been a Viking Specialized poultry special leading the way.
Options
- Air ride suspension
- Front and rear bulkheads
- Fully floored with 10 gauge steel
- (22) 4″ Weld-on or bolt-on winches
- Custom paint colors
- Polished or machine finished aluminum wheels
- D-rings
- 3-Wheel lift transport kit
- Improved stability system
- Tire inflation system
- Contact a sales representative for additional options to meet your specific needs.
