Bright Coop, Inc. is the authorized dealer for Viking Specialized Poultry Trailers.

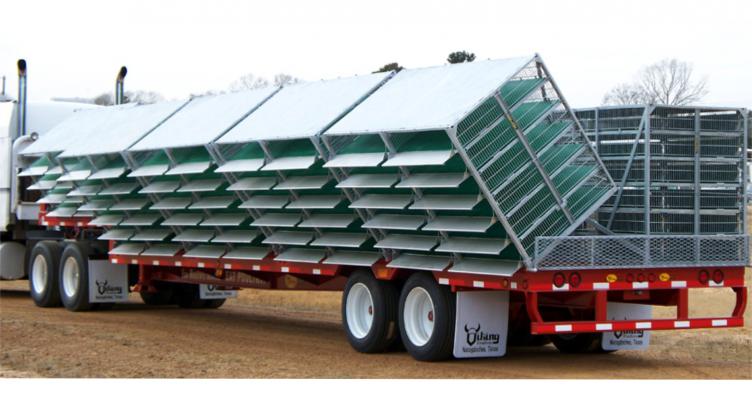

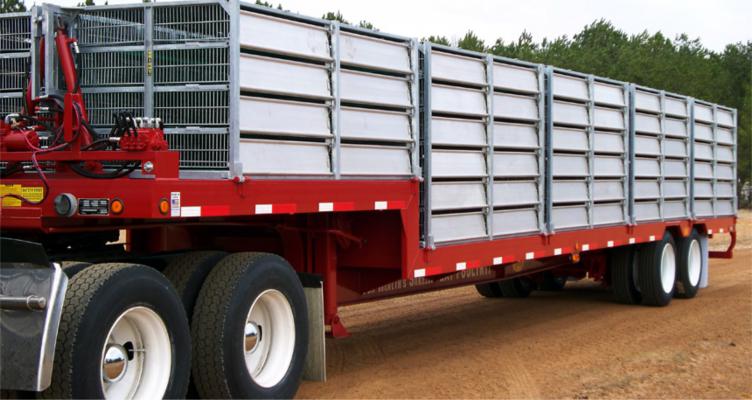

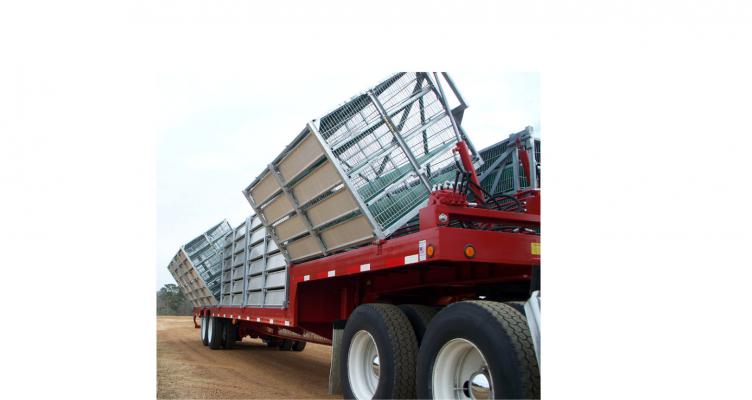

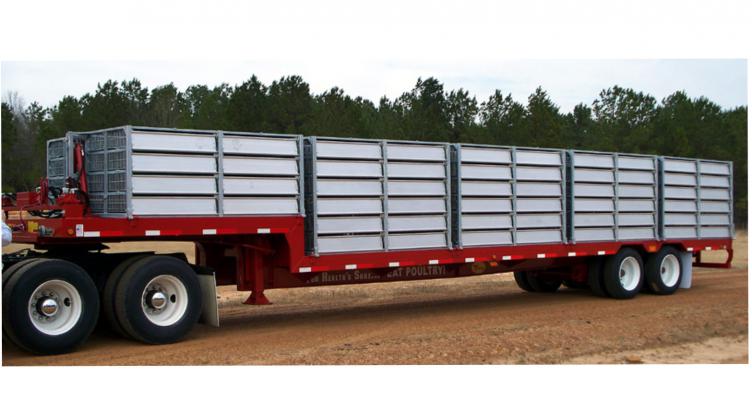

The Pullet/Poult mover comes with galvanized coops mounted on a Viking specialized Pullet/Poult Trailer. Available in 3,4,5 and 6 floor high cage configuration; 2 or 3 doors per floors. Spring loaded doors open when cage is tilted, letting birds slide out onto house floor.
Cages feature extruded aluminum doors and woven fiberglass floors.
The electric motor power system-operates off truck battery or separate battery. The control valves provide easy, smooth operation and is plumbed for longer lasting hydraulic life and fluid containment.
Call us for more detailed specifications on trailer.
Features
Mainframe
18” fabricated I-beam
Crossmembers
6” Jr. I-beam on 18” centers
Kingpin
1/4” kingpin plate 22” kingpin setting
Siderails
8” structural channel
Suspension
Hutch H9700T 364-00 3-leaf heavy duty spring set at 108”
Axles
(2) 22,500 lbs., 5” round
Brakes
6-1/2” X 7”, type 30/30 brake chambers, outboard drums, (2S/1M) ABS on one axle
Wheels
10 hole steel disc
Tires
255/70R X 22.5 radials
Landing gear
Holland® Mark V two speed gear with 62,500 lb. lift capacity; 200,000 lb. static capacity (standard)
Finish
Viking Specialized Trailers are shot-blasted and primed with Zinc-Rick primer and top coated with a high solid polyurethane paint.
Floors
Treated ship-lap pine is standard (Optional Flooring includes: Apitong, Bamboo and Transdeck.)
Lights
Sealed wiring harness, rubber mounted LED lights
Rear bumper
D.O.T. certified rear under ride guard/bumper and high visibility reflective conspicuity tape.
Options
- Viking Specialized – “Poult/Pullet” Trailer can be manufactured with stripped or full floor with fiberglass covering, cornering lights, air ride suspensions, sliding suspensions, drop decks, flat decks, and other features to better serve your needs.
- 8 Cages 6 floors high, 2 Cages 4 floors high, 2 doors wide; #1 green floors

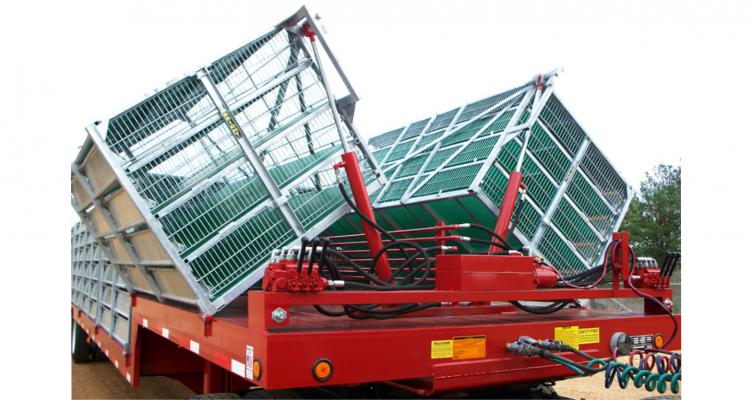

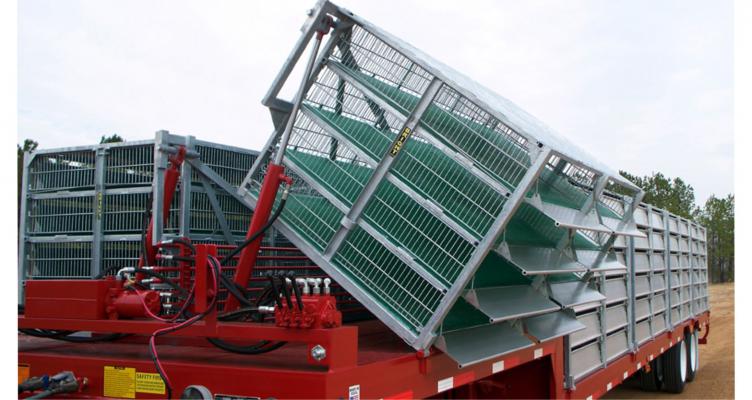

- Hydraulic system to dump cages includes: hydraulic cylinders, brackets, hinges for tilting cages: anchors, valves, plumbing, hoses
- Fittings and installation
- Contact a sales representative for additional options to meet your needs.
